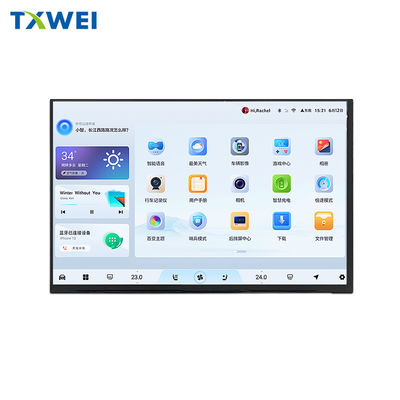

Landscape 10.1-inch LVDS interface LCD screen 1280*800 central control screen instrument display medical equipment screen

TXW100090S0
10.1 "hardcore high brightness screen, one can easily understand the word" reliable "at a glance

High brightness IPS, transparent even under the sun
900 nits brightness, outdoor direct light without reflection, agricultural machinery, trucks, docks, the picture is always clear.

-Operating at a wide temperature range of 30 ℃ to+80 ℃
Northeast permafrost, desert heat wave, normal operation, stable even without a heater.

LVDS 8-bit 40Pin, Plug and play display
Industrial motherboard, Android board, Raspberry Pi, light up as soon as the cable is plugged in, saving a week of development.

1280 × 800 high-definition split screen
The menu, map, and parameters are displayed on the same screen, and the font size is not blurry no matter how large it is.

Metal grade stable structure
4.3mm ultra-thin body, shock-absorbing rubber pad+full fit, the tractor does not shake off the screen.

Lock key information at a glance
☛ 900 nits sunlight readable, IPS full view colorless bias
☛ Industrial wide temperature range of 30 ℃ to+80 ℃, no need for heaters or heat sinks
☛ 1280 × 800 high-definition resolution, 216.96 × 135.6 mm effective display area
☛ LVDS 8-bit 40Pin standard interface, plug and play display on motherboard
☛ 4.3mm ultra-thin body+full lamination process, anti vibration, dustproof, and anti condensation

Turn sunlight into an advantage
☛ Traditional LCD screens have insufficient brightness outdoors, and users can only "block light with their hands". TXW100090S0

adopts a high brightness LED backlight array,

☛ with a brightness increase of 900 nits. Combined with IPS 178 ° full view angle,

 data can still be read clearly under 45 ° direct sunlight at noon. Agricultural machinery mowing,

☛ truck navigation, port cranes,drivers no longer "guess numbers", lock the speed, oil pressure, GPS route at a glance.

Turn temperature difference into 'no sensation'
☛ In the early morning at -25 ℃ in Northeast China and 65 ℃ in the Middle East, the screen on the roof should light up within

3 seconds. We use wide temperature LCD material and industrial grade driver IC EK79202, with 1000 cycles of cold and hot shock

 without bubbles or mura; Internal negative temperature compensation circuit, no ghosting at low temperatures and no black

screen at high temperatures. The whole machine has passed the IEC 60068-2-1/2/14 (low temperature, high temperature,

temperature change) certification and can be directly attached to the metal shell, eliminating the need for heating elements

 and fans, and reducing the system BOM cost by 8%.

Transform the interface into a 'universal language
☛ LVDS 8-bit 40Pin is the most universal interface for industrial motherboards, car consoles, and Android boxes.

TXW100090S0 provides:
☛ Standard 50 cm LVDS harness (I-PEX 20455)
☛ Backlight driver 5 V/12 V jumper selection, no additional constant current board required
☛ CABC (Content Adaptive Backlight) enabled foot, can save 30% power with just one click
☛ Optional capacitive touch (GT928 multi-point, supports wet hands/gloves) and AR anti glare glass, with a total

 thickness of up to 9mm

Transform the structure into 'invisible armor
☛ 4.3mm ultra-thin body, 2.5mm reinforced frame around, can be embedded with standard 10.1 "Panel Mount openings;

☛ The fully bonded process prevents water vapor and dust from entering, with a vibration level of 5-grms (10-500 Hz),

meeting the ISO 16750-3 vehicle transportation standard.

☛ Reserved 4 × M3 copper pillars and grounding spring on the back, directly connected to the chassis,

only one common mode inductor is required for EMC Class A.

Turn temperature difference into 'no sensation'
☛ In the early morning at -25 ℃ in Northeast China and 65 ℃ in the Middle East, the screen on the roof should light up within

3 seconds. We use wide temperature LCD material and industrial grade driver IC EK79202, with 1000 cycles of cold and hot

 shock without bubbles or mura; Internal negative temperature compensation circuit, no ghosting at low temperatures and

 no black screen at high temperatures. The whole machine has passed the IEC 60068-2-1/2/14

(low temperature, high temperature, temperature change) certification and can be directly attached to the metal shell,

 eliminating the need for heating elements and fans, and reducing the system BOM cost by 8%.
