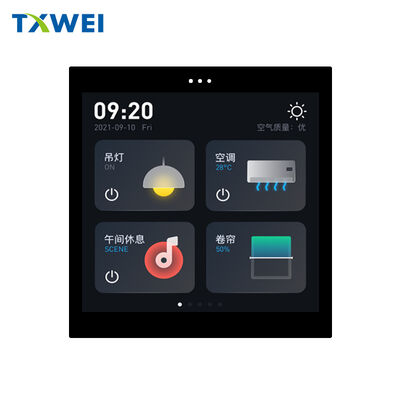

4.2-inch LCD display, 4-inch square screen, smart home MIPI interface, 720*672 resolution, 86 switches

Cuota De Producción: 1
Precio: Negociable
Período De Entrega: 7-16 días
Forma De Pago: LC, D/A, D/P, T/T
Capacidad De Suministro: 10000PCS
Información detallada
Descripción del producto
Información detallada
Lugar de origen
Shénzhen
Nombre de la marca
TXWEI
Certificación
CE FCC ROHS
Número de modelo
TXW420001B0-TC01
Documento
TXW420001B0-TC_SPEC.pdf
Número de píxeles:
720*672
Dirección de observación:
IPS
Interfaz de visualización:
MIPI
Brillo:
300 nits
Área activa:
77,98*72,78
Tamaño del contorno:
87,1*90,6*3,35mm
Temperatura de funcionamiento:
-20+70 ℃
Temperatura de almacenamiento:
-30 + 80 °C
Número de pines:
40PIN
Tecnología táctil:
G+FF
Interfaz táctil:
IIC
Tocar ic:
GT911
Resaltar:

4.2-inch TFT LCD display with MIPI interface

,

4-inch square TFT LCD screen 720x672 resolution

,

smart home TFT LCD display with 86 switches

Descripción del producto

TXW420001B0-TC: 4.2” TFT LCD+CTP Module — Where Precision Meets Durability

From industrial control to consumer electronics, the demand for integrated display-touch solutions that deliver clarity, responsiveness, and resilience is non-negotiable. Shenzhen Tianxianwei Technology Co., Ltd. introduces the TXW420001B0-TC — a 4.2-inch standard LCD module that combines a high-performance TFT display with a capacitive touch panel (CTP). Engineered with IPS technology, advanced driver ICs, and a rugged design, this module is built to elevate product experiences across diverse applications.

Key Product Overview


Basic Information Details
Model Number TXW420001B0-TC
Product Type 4.2” TFT LCD + CTP Integrated Module
Core Configuration TFT PANNEL + IC + FPC + BL + CTP
Compliance Lead-Free Materials & Processing
Manufacturer Shenzhen Tianxianwei Technology Co., Ltd.



Core Features at a Glance

Visual Performance

  • Display Technology: IPS Type LCD (Normally Black)
  • Resolution: 720×RGB×672 Dots (16.7 Million Colors, Software-Selectable)
  • Viewing Angles: 70-80° (All Clock Directions, CR>10)
  • Contrast Ratio: Typ. 1500:1 (0° Viewing Angle)
  • Backlight: Edge-Lighting with 12 White LEDs (300 cd/m² Luminance)


Touch Capabilities

  • Touch Structure: G+FF Capacitive Touch Panel
  • Touch Driver IC: GT911
  • Touch Interface: I2C (Low Latency, Seamless Integration)


Hardware & Dimensions

  • Display Driver IC: ST7703I
  • Display Interface: 4-Lane MIPI
  • Active Area: 77.98(H) × 72.78(V) mm
    • LCM: 81.38(W) × 79.68(H) × 2.05(T) mm
    • LCM+CTP: 86.00(W) × 89.00(H) × 3.35(T) mm
    • Module Size:
  • Pixel Pitch: 0.0361(H) × 0.1083(V) mm



Environmental Resilience

  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to +80°C
  • Humidity Tolerance: 20% ~ 90% RH (Operating/Storage)
  • LED Lifespan: 30,000 Hours (Brightness Retains 50% of Original)


Electrical Specifications

  • Supply Voltage: VDD (3.0-3.3V), VDDIO (1.8-3.3V), CTP_VCC (2.8-3.3V)
  • Backlight Forward Voltage: 16.8-19.2V
  • Backlight Forward Current: Typ. 40mA


Why Choose the TXW420001B0-TC?

1. Superior Visual & Touch Synergy

The IPS display delivers consistent color accuracy and wide viewing angles, ensuring clear visibility from any position — critical for shared devices or mounted applications. Paired with the GT911 touch IC and G+FF structure, the module offers responsive, precise touch interaction, supporting intuitive gestures and fast data input.

2. Seamless Integration

Equipped with a 4-lane MIPI interface for the display and I2C for touch, the module ensures high-speed data transmission and compatibility with mainstream host processors. Its compact, slim profile (3.35mm max thickness for LCM+CTP) fits easily into tight device designs, reducing engineering complexity for manufacturers.

3. Rugged & Reliable

Rigorously tested for extreme conditions, the module withstands high/low temperatures, humidity, and thermal shock (10 cycles of -20°C/30min ~ +70°C/30min). The lead-free design aligns with global environmental standards, while the 30,000-hour LED lifespan minimizes maintenance costs for end users.

4. Versatile Application Potential

Ideal for:
  • Industrial HMI (Human-Machine Interface)
  • Portable Medical Monitors
  • Handheld Controllers & Smart Terminals
  • In-Vehicle Secondary Displays
  • IoT Devices & Wearable Tech
  • Consumer Electronics (Compact Navigation, Mini Smart Displays)   The TXW420001B0-TC is more than a display module — it’s a reliable, high-performance solution designed to empower your products. Whether you’re building industrial equipment or consumer tech, this module delivers the precision, durability, and integration flexibility you need to stand out in the market.
