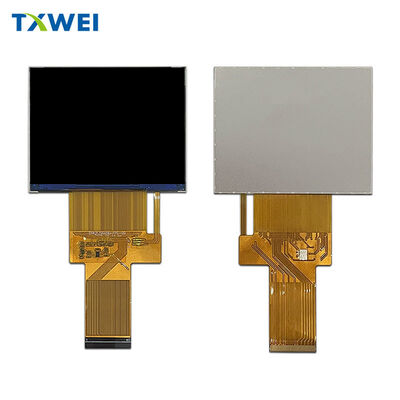

3.2 inch TFT Display with Horizontal RGB/MIPI Interface 1024*768 Industrial Screen for Medical Endoscope LCD

Cuota De Producción: 1
Precio: Negociable
Período De Entrega: 7-16 días
Forma De Pago: LC, D/A, D/P, T/T
Capacidad De Suministro: 10000PCS
Información detallada
Descripción del producto
Información detallada
Lugar de origen
SHENZHEN
Nombre de la marca
TXWEI
Certificación
CE FCC ROHS
Número de modelo
TXW317001B0
Documento
TXW317001B0_SPEC.pdf
Número de píxeles:
1024*768
Dirección de visualización:
IPS
Interfaz de visualización:
PEDAZO DEL RGB 24
Brillo:
600 liendres
Área activa:
64,51*48,38(mm)
Tamaño del contorno:
69,41*55,49*2,25(mm)
Temperatura de funcionamiento:
-20+70 ℃
Temperatura de almacenamiento:
-30 + 80 °C
Número de pines:
40PIN
Resaltar:

3.2 inch TFT LCD display

,

industrial TFT screen with RGB/MIPI interface

,

medical endoscope LCD display

Descripción del producto

TXW317001B0

3.2-Inch Industrial-Grade IPS Display

Precision Visuals. Built for Demanding Environments.

Overview

The TXW317001B0 is a high-reliability 3.2-inch display engineered for industrial inspection systems and precision medical equipment. Combining IPS full-view technology with industrial-grade wide-temperature operation, it delivers exceptional image quality in compact spaces—empowering endoscopes, diagnostic instruments, and portable inspection devices with visuals that professionals can trust.

Why TXW317001B0?

Crisp, Detail-Rich Imaging
1024 × 768 resolution across a 3.2-inch panel delivers approximately 400 PPI pixel density. Every crack, texture, and surface anomaly becomes visible. Whether identifying microscopic fractures in industrial pipelines or examining tissue structures in medical procedures, this display reveals what others might miss.
True Color from Every Angle
IPS technology enables 178° ultra-wide viewing angles. Colors and contrast remain consistent whether viewed head-on or from the side—eliminating the color shift and washout issues common in standard TN panels. In collaborative environments, every team member sees the same accurate image.
Readable in Any Light
600 nits peak brightness outperforms standard displays by 50% or more. Outdoor fieldwork, high-ambient-light industrial floors, or surgical suites with powerful overhead lighting—screen content stays clearly visible when it matters most.
Engineered for Extremes
Certified for operation from -20°C to +70°C, with storage tolerance extending to -30°C to +80°C. From freezing outdoor installations to heat-intensive factory environments, this display maintains stable performance where consumer-grade screens would fail.
Space-Efficient Design
Active area measures 64.51 × 48.38 mm within an overall footprint of just 69.41 × 55.49 × 2.25 mm. At 2.25 mm thin, it frees valuable internal space for batteries, processors, or optical assemblies—helping your end product achieve sleeker, more ergonomic designs.

Technical Specifications

Display Characteristics
  • Resolution: 1024 × 768 (XGA)
  • Display Technology: IPS full-viewing-angle panel
  • Brightness: 600 cd/m²
  • Active Area: 64.51 mm × 48.38 mm
  • Outline Dimensions: 69.41 mm × 55.49 mm × 2.25 mm
Interface & Drive
  • Signal Interface: RGB 24-bit parallel
  • Pin Configuration: 40-pin standard connector
  • Driver IC: JD9168S with integrated Gamma correction and power management
Environmental Resilience
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -30°C to +80°C
  • Humidity Tolerance: 10%–90% RH, non-condensing

Applications

Industrial Borescopes & Videoscopes
Pipeline inspection, precision machinery internal examination, automotive engine diagnostics. High resolution reveals millimeter-scale defects. IPS technology preserves defect characteristics across viewing angles. Wide-temperature design withstands field deployment conditions.
Medical Endoscopy Systems
Laparoscopes, arthroscopes, ENT examination equipment. 600-nits brightness penetrates dark internal cavities. Accurate color reproduction presents true tissue states for confident clinical decision-making.
Laryngoscopes & Airway Management
Anesthesia and emergency airway procedures. Fast response eliminates motion blur. Real-time HD display integrates with camera systems to improve intubation success rates and procedural safety.
Industrial Instruments & Portable Devices
Handheld gauges, portable test equipment, industrial controller HMI. Compact dimensions align with miniaturization trends. High reliability reduces on-site failure risks.

Delivery & Support
Lead Time: 3–5 days for samples, 4–6 weeks for volume orders
Technical Resources: Initialization code samples, mechanical integration guides, reliability test reports
Customization Services: Brightness tuning, pinout optimization, cover lens bonding, and more


Get Started
Request samples. Download full specifications. Discuss customization.
Connect with our technical sales team for personalized product selection guidance and quotation.
